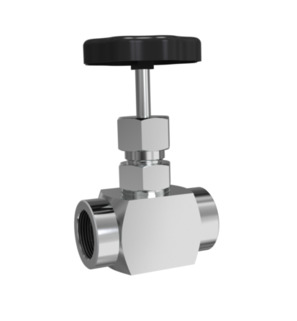

Needle valve GL009-12-W-3C
Needle valve Series GL009-W-3C; Body Stainless steel 1.4571; Stem seal PTFE; Medium temperature -20...+250°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; G 1/2"; DN 7mm; Pressure range 0…400bar; Length 60mm; Material handwheel Polyamid
Intrastat No.: 84818073
Country of origin: Germany
Weight: 0.42 Kg
Short Itemnumber: GL00912W3C
Country of origin: Germany
Weight: 0.42 Kg
Short Itemnumber: GL00912W3C
needle valve series GL009-W-3C; body stainless steel AISI 316Ti; stem seal PTFE; medium temperature -20...+250°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; G 1/2"; DN 7mm; pressure range 0…400bar; length 60mm; material handwheel Polyamid
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 7 mm |
| Length | 60 mm |
| pressure | |
| Pressure range | 0...400 bar |
| materials | |
| Material handwheel | Polyamide |
No spare parts are available for this product.
