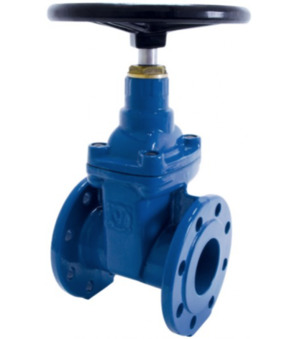

Gate valve with hand wheel GA011-400-W

Gate valve with hand wheel GA011-400-W

Gate valve with hand wheel Series GA011; Flanged type; Material Ductile iron EN-GJS-500-7; Wedge EPDM rubberized; Nominal flange pressure PN10; Medium temperature -20...+70°C; Pressure range 0...10bar; Packing NBR; DN 400mm; Length 310mm

Intrastat No.: 84818061
Country of origin: China
Weight: 267.0 Kg
Short Itemnumber: GA011400W
https://www.stasto.eu/web/image/product.template/126022/image_1920?unique=dae1e27

gate valve with hand wheel series GA011; flanged type; material ductile iron EN-GJS-500-7; wedge EPDM rubberized; nominal flange pressure PN10; medium temperature -20...+70°C; pressure range 0...10bar; packing NBR; DN 400mm; length 310mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Packing

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
Packing NBR
DN 400 mm
Length 310 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar
Packing NBR
DN 400 mm
Length 310 mm

GA011-400-W

Documents

1 Documents

German / Deutsch
ZIP

Data Sheets

1
No spare parts are available for this product.
