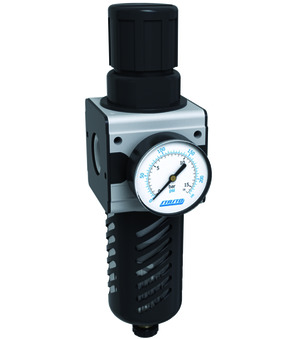

Filter regulator FR03-38-0,5/10-P
Pressure regulator with continuous pressure supply RE03-12-0,2/6-MA-AT
Pressure regulator with continuous pressure supply RE03-12-0,2/6-MA-AT
97,10 €
97,10 €
Pressure regulator with continuous pressure supply RE03-12-0,5/16-MA-AT
Pressure regulator with continuous pressure supply RE03-12-0,5/16-MA-AT
97,10 €
97,10 €

Filter regulator FR03-38-0,5/10-P

Filter regulator Series Modul FR03-P; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Plastic bowl with protection cage; Filter element 5µm; Connection 3/8"; Flow at 6bar/Δp=1bar 1500Nl/min

Intrastat No.: 84811005
Country of origin: Germany
Weight: 0.44 Kg
Short Itemnumber:FR03380.510P
https://www.stasto.eu/web/image/product.template/108683/image_1920?unique=e5e4a60

filter regulator series Modul FR03-P; relieving; drain valve semi-automatic; inlet pressure max. 16bar; pressure range 0,5...10bar; plastic bowl with protection cage; filter element 5µm; connection 3/8"; flow at 6bar/Δp=1bar 1500Nl/min

107,20 € 107.2 EUR 107,20 €

price on request

  • Connection
  • Dimension
  • Flow at 6bar/Δp=1bar
  • Filter element

This combination does not exist.

Availability:
Contact Us
dimension
Connection 3/8"
Dimension 12
characteristics
Flow at 6bar/Δp=1bar 1500 Nl/min
Filter element 5 µm
