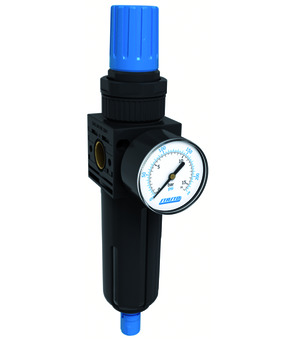

FR01-14-0,5/8-F5

Name: FR01-14-0,5/8-F5
Brand: STASTO
SKU: FR01-14-0,5/8-F5
Price: 78.0 EUR
Availability: InStock

Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 5ym; Plastic bowl with protection cage; Connection 1/4"; Flow at 6,3 bar 1200Nl/min; Max. inlet pressure 16bar

Intrastat No.: 84811099
Country of origin: Italy
Weight: 0.25 Kg
Short Itemnumber: FR01140.58F5

filter regulator; relieving; drain valve semi-automatic; pressure range 0,5...8bar; filter element 5ym; plastic bowl with protection cage; connection 1/4"; flow at 6,3 bar 1200Nl/min; max. inlet pressure 16bar

78,00 € 78.0 EUR 78,00 €

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_FR01140.58F5.stp

Download

FR01-14-0,5/8-X x 1.0

FR01-14-0,5/8-X

Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20ym; Plastic bowl with protection cage; Connection 1/4"; Flow at 6,3 bar 1200Nl/min; Max. inlet pressure 16bar; Without manometer

Add to Cart

K-EF-G1 x 1.0

K-EF-G1

Filter element; Suitable for Filter regulator Series FR/FR01; Material Polyethylene; Connection 1/4"; Pore size 5µm

Add to Cart

MA001-40R-10-D x 1.0

Bourdon tube manometer MA001-40R-10-D

Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-10/0-145; Unit bar/psi; Connection 1/8"

Add to Cart
