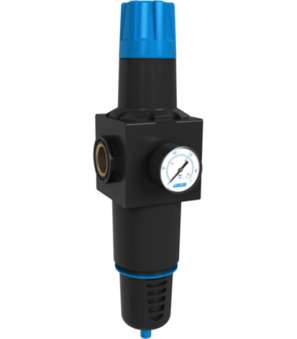

Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...4bar; Filter element 20µm; Plastic bowl with protection cage; Connection 1"; Flow at 6,3bar/Δp=1bar 13800Nl/min; Max. inlet pressure 12,5bar
Intrastat No.: 84811099
Country of origin: Italy
Weight: 2.36 Kg
Short Itemnumber: FR102004RPESS
Country of origin: Italy
Weight: 2.36 Kg
Short Itemnumber: FR102004RPESS
Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...4bar; Filter element 20µm; Plastic bowl with protection cage; Connection 1"; Flow at 6,3bar/Δp=1bar 13800Nl/min; Max. inlet pressure 12,5bar
Technical specifications
| Connection | 1" |
|---|---|
| Pressure range | 0,5...4bar |
| Brand | STASTO |
| Connection | 1" |
| Pressure range | 0,5...4bar |
| Brand | STASTO |
FR-10-20-04-R-PE-SS-X
x 1.0 Pcs
FR-10-20-04-R-PE-SS-X
Filter regulator without gauge, 0.5-4 bar connection 1"
MA001-50R-6
x 1.0 Pcs
Bourdon tube manometer MA001-50R-6
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-6; Unit bar; Connection 1/4"
