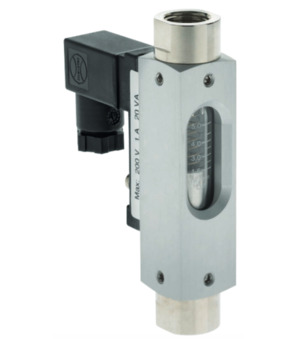

Flow monitors With Inspection glass 1/2"-65…255-16-24
Flow monitors; ATEX-design Ex II 2G Ex ib IIC + Ex IID Ex h IIIC; Connections, Float And Body 1.4571; For any mounting position; Medium temperature Max. 45°C; Air scale; Switching range at 1.5 bar absolute; 20°C; NO contact; Connection 1/2"; Switching range 65…255Nl/min; Maximum pressure 16bar; U max. 30V; I max. 0,1A; Length 114mm; Connection Cable 1Meter
Intrastat No.: 90268080
Country of origin: Germany
Weight: 0.29 Kg
Short Itemnumber: FM4212W25501
Country of origin: Germany
Weight: 0.29 Kg
Short Itemnumber: FM4212W25501
flow monitors; ATEX-design Ex II 2G Ex ib IIC + Ex IID Ex h IIIC; connections, float and body AISI 316Ti; for any mounting position; medium temperature max. 45°C; air scale; switching range at 1,5 bar absolute; 20°C; NO contact; connection 1/2"; switching range 65…255Nl/min; maximum pressure 16bar; U max. 30V; I max. 0,1A; length 114mm; connection cable 1meter
| Design | ATEX |
No spare parts are available for this product.
