flow monitors; display lateral; viscosity compensated ...900mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; NO contact; application: monitoring of lubrication; connection 1"; switching range 2...8l/min; maximum pressure 250bar; U max. 250V; max. current 3A;
Country of origin: Germany
Weight: 1.246 Kg
Short Itemnumber: FM2410N8
flow monitors; display lateral; viscosity compensated ...900mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; NO contact; application: monitoring of lubrication; connection 1"; switching range 2...8l/min; maximum pressure 250bar; U max. 250V; max. current 3A;
Technical specifications
| Connection | G 1" |
|---|---|
| Length | 130 mm |
| Switch unit | NO contact |
| U max. | 250 V |
| Connection | G 1" |
| Length | 130 mm |
| Switch unit | NO contact |
| U max. | 250 V |
| I max. | 3 A |
| Maximum pressure | 250 bar |
| Switching range | 2...8 l/min |

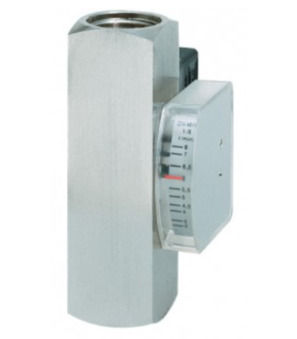

FM24-10-N-8
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Strömungswächter Serie FM24 · DE
Data sheet 3,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Flow monitors Series FM24 · EN
Data sheet 3,3 MB Updated 13/06/2026
