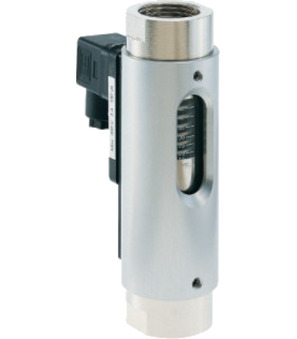

Flow monitors FM13-34-N-1,5
flow monitors; body, float nickel plated brass; for any mounting position; medium temperature max. 100°C; oil scale viscosity compensated; normally closed contact; connection G3/4"; switching range 0,5…1,5 l/min; maximum pressure 10bar; U max. 250V; max. current 1,5A; length 138,5mm
Intrastat No.: 90261081
Country of origin: Germany
Weight: 0.813 Kg
Short Itemnumber: FM1334N1.5
Country of origin: Germany
Weight: 0.813 Kg
Short Itemnumber: FM1334N1.5
flow monitors; body, float nickel plated brass; for any mounting position; medium temperature max. 100°C; oil scale viscosity compensated; normally closed contact; connection G3/4"; switching range 0,5…1,5 l/min; maximum pressure 10bar; U max. 250V; max. current 1,5A; length 138,5mm
| dimension | |
|---|---|
| Connection | G 3/4" |
| Length | 138,5 mm |
| Electrical key figures | |
| U max. | 250 V |
| I max. | 1,5 A |
| pressure | |
| Maximum pressure | 10 bar |
| characteristics | |
| Switching range | 0,5...1,5 l/min |
No spare parts are available for this product.
