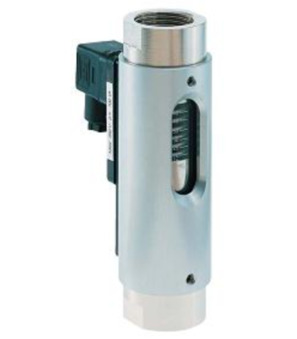

flow monitors with inspection glass series FM10-N; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 45°C; water scale; NO contact; connection 1/2"; switching range 4,5...12l/min; maximum pressure 16bar; U max. 230V; I max. 1A; length 114mm; ATEX Ex II 2G Ex h IIB T6 Gb; Ex II 2G Ex h IIC T6 Gb and Ex II 2D Ex h IIIC T80°C Db
Country of origin: Germany
Weight: 0.3 Kg
Short Itemnumber: FM1012N1202
Scope of delivery
flow monitors with inspection glass series FM10-N; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 45°C; water scale; NO contact; connection 1/2"; switching range 4,5...12l/min; maximum pressure 16bar; U max. 230V; I max. 1A; length 114mm; ATEX Ex II 2G Ex h IIB T6 Gb; Ex II 2G Ex h IIC T6 Gb and Ex II 2D Ex h IIIC T80°C Db
Technical specifications
| Connection | 1/2" |
|---|---|
| Switching range | 4,5...12 l/min |
| Maximum pressure | 16 bar |
| U max. | 230 V |
| Connection | 1/2" |
| Switching range | 4,5...12 l/min |
| Maximum pressure | 16 bar |
| U max. | 230 V |
| I max. | 3 A |
| Length | 114 mm |
| Design | ATEX |
FM10-12-N-12-02
