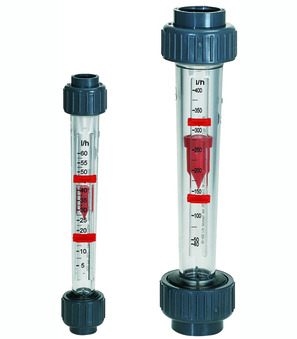

Flow meter FM06-10-M-30-01
Flow meter Series FM06/FM07; Float PVDF; Female thread Malleable cast iron zinc plated; Scale for air at 0 bar/20°C; Pressure Max. 10bar; Mounting position Vertical pipe; Temperature range +5...+75°C; Application: Air; Connection 1"; Range 6...30Nm3/h; Measuring tube PSU; Limit value contact ZNC
Intrastat No.: 90268080
Country of origin: Germany
Weight: 0.24 Kg
Short Itemnumber:FM0610M3001
Country of origin: Germany
Weight: 0.24 Kg
Short Itemnumber:FM0610M3001
flow meter series FM06/FM07; float PVDF; female thread malleable cast iron zinc plated; scale for air at 0 bar/20°C; pressure max. 10bar; mounting position vertical pipe; temperature range +5...+75°C; application: air; connection 1"; range 6...30Nm3/h; measuring tube PSU; Limit value contact ZNC
| dimension | |
|---|---|
| Connection | 1" |
| characteristics | |
| Range | 6...30 Nm3/h |
| Range 2bar/20°C | 10...54 Nm3/h |
| Range 4bar/20°C | 12...70 Nm3/h |
| Range 6bar/20°C | 15...80 Nm3/h |
| Others | |
| Measuring tube | PSU |
No spare parts are available for this product.
