Micro filter Series FI33-F0,01-A-DI Store

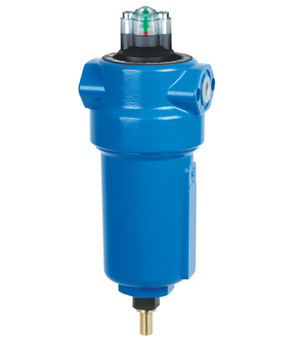

Micro filter FI33-30-F0,01-A-DI

Micro filter FI33-30-F0,01-A-DI

Micro filter Series FI33-F0,01-A-DI; Automatic valve for drainage of condensate; Inlet pressure 1,5...16bar; Metal bowl; To separate liquids and solid particles; Rest content of oil 0,01mg/m3; Compressed air quality According to ISO 8573-1, Dust/Oil, Class 1; Filter element 0,01µm; Connection 3"; Flow at 6bar/Δp=0,08bar 31680Nl/min

Intrastat No.: 84213925
Country of origin: Slovenia
Weight: 16.84 Kg
Short Itemnumber: FI3330F0.01ADI

micro filter series FI33-F0,01-A-DI; automatic valve for drainage of condensate; inlet pressure 1,5...16bar; metal bowl; to separate liquids and solid particles; rest content of oil 0,01mg/m3; compressed air quality according to ISO 8573-1, dust/oil, class 1; filter element 0,01µm; connection 3"; flow at 6bar/Δp=0,08bar 31680Nl/min

1.682,80 € 1682.8 EUR 1.682,80 €

Connection
- 3"
Dimension
- 30
Flow rate at 6bar/Δp=0.08bar
- 31680 Nl/min

This combination does not exist.

Availability:

dimension
Connection	3"
Dimension	30
characteristics
Flow rate at 6bar/Δp=0.08bar	31680 Nl/min

Data sheets, Instructions, 3D-files and Certificates...

In your language

Declarations of Conformity

1

Declaration of conformity_Micro filter Series FI33-F0,01-A-DI_EN.pdf

Prohlášení o shodě

1

Prohlášení o shodě_mikrofiltr série FI33-F0,01-A-DI_CS.pdf

Konformitätserklärungen

1

Konformitätserklärung_Mikrofilter Serie FI33-F0,01-A-DI_DE.pdf

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_mikroszűrő sorozat FI33-F0,01-A-DI_HU.pdf

Deklaracje zgodności

1

Deklaracja zgodności_mikrofiltr Seria FI33-F0,01-A-DI_PL.pdf

Izjave o skladnosti

1

Izjava o skladnosti_Mikrofilter serija FI33-F0,01-A-DI_SL.pdf

Declarations of Conformity

1

Deklaracija o usklađenosti_mikro filter serije FI33-F0,01-A-DI_SRLATIN.pdf

Filter housing FI33-30-W

FI33-30-W x 1.0

Filter housing FI33-30-W

Filter housing Series FI33-W; Inlet pressure Max. 16bar; Metal bowl; Connection 3"

FE-FI33-30-F0,01

FE-FI33-30-F0,01 x 1.0

FE-FI33-30-F0,01

Filter element; Suitable for Micro filter Series FI33-F0,01; Connection 3"

DI-FI33

DI-FI33 x 1.0

DI-FI33

Differential pressure indicator; Scaling 0...0,6bar (Green area); 0,6...0,9bar (Red area); Operating pressure Max. 16bar

MDV04

MDV04 x 1.0

MDV04

Automatic valve for drainage of condensate; Connection 1/2"; Condensat drain 8mm; Inlet pressure 1,5...16bar; Suitable to series FI33
