STASTO Allgemeine Preisliste (EUR)

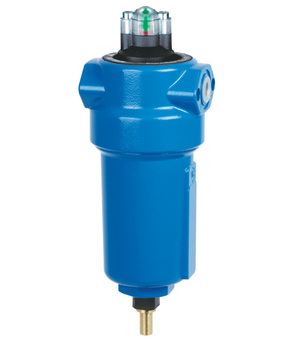

Micro filter FI33-20-F0,01-A-DI

Micro filter FI33-20-F0,01-A-DI

Micro filter Series FI33-F0,01-A-DI; Automatic valve for drainage of condensate; Inlet pressure 1,5...16bar; Metal bowl; To separate liquids and solid particles; Rest content of oil 0,01mg/m3; Compressed air quality According to ISO 8573-1, Dust/Oil, Class 1; Filter element 0,01µm; Connection 2"; Flow at 6bar/Δp=0,08bar 14660Nl/min

Mikrofilter Serie FI33-F0,01-A-DI
Mikrofilter Serie FI33-F0,01-A-DI
Intrastat No.: 84213925
Country of origin: Slovenia
Weight: 5.84 Kg
Short Itemnumber: FI3320F0.01ADI

Scope of delivery

micro filter, differential pressure indicator
https://www.stasto.eu/web/image/product.template/161441/image_1920?unique=f74ee88

micro filter series FI33-F0,01-A-DI; automatic valve for drainage of condensate; inlet pressure 1,5...16bar; metal bowl; to separate liquids and solid particles; rest content of oil 0,01mg/m3; compressed air quality according to ISO 8573-1, dust/oil, class 1; filter element 0,01µm; connection 2"; flow at 6bar/Δp=0,08bar 14660Nl/min

827,70 € 827.7 EUR 827,70 €

Not Available For Sale

excl. tax
  • Connection
  • Dimension
  • Flow rate at 6bar/Δp=0.08bar
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 2"
Flow rate at 6bar/Δp=0.08bar 14660 Nl/min
Brand STASTO
Documents
Data sheets, drawings and CAD files
Connection 2"
Flow rate at 6bar/Δp=0.08bar 14660 Nl/min
Brand STASTO

FI33-20-F0,01-A-DI

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1
German / Deutsch
ZIP

Declarations of Conformity

1
English
ZIP

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1
Polish / Język polski
ZIP

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1
Filter housing FI33-20-W
FI33-20-W x 1.0 Pcs
Filter housing FI33-20-W
Filter housing Series FI33-W; Inlet pressure Max. 16bar; Metal bowl; Connection 2"
FE-FI33-20-F0,01
FE-FI33-20-F0,01 x 1.0 Pcs
FE-FI33-20-F0,01
Filter element; Suitable for Micro filter Series FI33-F0,01; Connection 2"
DI-FI33
DI-FI33 x 1.0 Pcs
DI-FI33
Differential pressure indicator; Scaling 0...0,6bar (Green area); 0,6...0,9bar (Red area); Operating pressure Max. 16bar
MDV04
MDV04 x 1.0 Pcs
MDV04
Automatic valve for drainage of condensate; Connection 1/2"; Condensat drain 8mm; Inlet pressure 1,5...16bar; Suitable to series FI33
