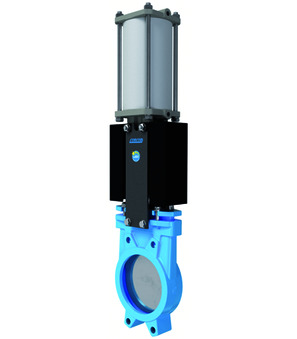

F1N3D3-Z-500-PI-01
knife gate valve with double acting actuator series F; wafer type; housing ductile iron EN-GJS-500-7; gate ; soft sealed FKM; with reinforced fixing ring; packing PTFE/copper; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN500; length 152mm; pressure range 0…0,3bar; prepared for 2 inductive limit switches M18; greased with pneumatic grease PG; abrasion protection NIHARD; housing coating for 100°C
Country of origin: Spain
Short Itemnumber: F1N3D3Z500PI01
knife gate valve with double acting actuator series F; wafer type; housing ductile iron EN-GJS-500-7; gate ; soft sealed FKM; with reinforced fixing ring; packing PTFE/copper; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN500; length 152mm; pressure range 0…0,3bar; prepared for 2 inductive limit switches M18; greased with pneumatic grease PG; abrasion protection NIHARD; housing coating for 100°C
| dimension | |
|---|---|
| DN | 250 mm |
| Length | 70 mm |
| pressure | |
| Pressure range | 0...10 bar, 0...8 bar |
