STASTO Allgemeine Preisliste (EUR)
E-149G011298-VB060H

E-149G011298-VB060H

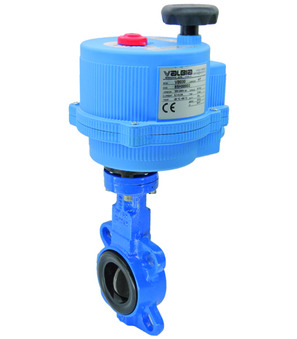

Butterfly valve with electrical actuator Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc 1.4408; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature +8...+110 °C; Pressure range 0...10bar; DN 80mm; Length 46mm; Operating time 9s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.24 Kg
Short Itemnumber: E149G011298VB060H
https://www.stasto.eu/web/image/product.template/76991/image_1920?unique=f96ddcc

Butterfly valve with electrical actuator Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc 1.4408; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature +8...+110 °C; Pressure range 0...10bar; DN 80mm; Length 46mm; Operating time 9s; Voltage 100-240VAC

999.999,00 € 999999.0 EUR 999.999,00 €

On request

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar

E-149G011298-VB060H

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Electrical actuator VB060-H
VB060-H x 1.0 Pcs
Electrical actuator VB060-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
149G011298
149G011298 x 1.0 Pcs
149G011298
Butterfly valve Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc 1.4408; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature -10...+110 °C; DN 80mm; Length 46mm; Pressure range 0-16bar
Accessory Products
Electrical actuator VB060-H
VB060-H
Electrical actuator VB060-H
Voltage
100-240VAC
