STASTO Allgemeine Preisliste (EUR)
  1. Products
  2. E-149G010895-VB030L
E-149G010895-VB030L

E-149G010895-VB030L

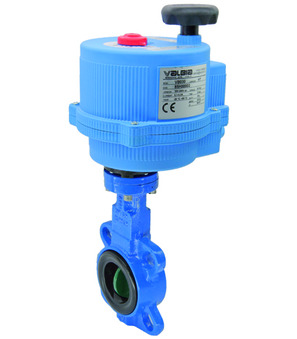

Butterfly valve with electrical actuator Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Polyamide-coated; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature +8...+110 °C; Pressure range 0...10bar; DN 50mm; Length 43mm; Operating time 8s; Voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.89 Kg
Short Itemnumber: E149G010895VB030L
https://www.stasto.eu/web/image/product.template/76976/image_1920?unique=f020a99

Butterfly valve with electrical actuator Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Polyamide-coated; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature +8...+110 °C; Pressure range 0...10bar; DN 50mm; Length 43mm; Operating time 8s; Voltage 24VAC/DC

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Electrical actuator VB030-L
    VB030-L x 1.0
    Electrical actuator VB030-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
    Add to Cart
    Accessory Products
    Electrical actuator VB030-L
    VB030-L
    Electrical actuator VB030-L
