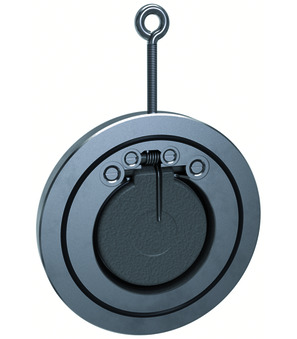

Swing check valve Series CH013-A3C; Wafer type; ATEX zone 1 and 21; Reset by spring; Body, Disc 1.4401; Seal FKM; Medium temperature -50…+260°C; DN 100mm; Nominal flange pressure PN63; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Country of origin: Italy
Short Itemnumber: CH013100A3CPN63
swing check valve series CH013-A3C; wafer type; ATEX zone 1 and 21; reset by spring; body, disc AISI 316; seal FKM; medium temperature -50…+260°C; DN 100mm; nominal flange pressure PN63; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Technical specifications
| DN | 100 mm |
|---|---|
| Length | 18 mm |
| Flange | ANSI150 |
| Design | ATEX |
| DN | 100 mm |
| Length | 18 mm |
| Flange | ANSI150 |
| Design | ATEX |
CH013-100-A3CPN63
