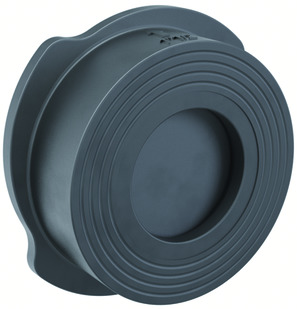

Check valve CH009-25-N-3C
check valve series CH009-N-3C; wafer type; body AISI 316; disc AISI 316L; seal NBR; medium temperature -25...95°C; DN 25mm; length 22mm; nominal flange pressure PN6/10/16/25/40, ANSI150/300; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Intrastat No.: 84813091
Country of origin: Italy
Weight: 0.271 Kg
Short Itemnumber:CH00925N3C
Country of origin: Italy
Weight: 0.271 Kg
Short Itemnumber:CH00925N3C
check valve series CH009-N-3C; wafer type; body AISI 316; disc AISI 316L; seal NBR; medium temperature -25...95°C; DN 25mm; length 22mm; nominal flange pressure PN6/10/16/25/40, ANSI150/300; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
| DN | 25 mm |
| Length | 22 mm |
| Flange | PN6/10/16/25/40, ANSI150/300 |
No spare parts are available for this product.
