Check valve CH009-15-3C
Check valve CH009-100-3C
Check valve CH009-100-3C
428,10 €
428,10 €
Check valve CH009-50-3C
Check valve CH009-50-3C
149,30 €
149,30 €

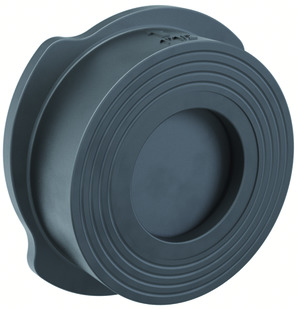

Check valve CH009-15-3C

Check valve Series CH009-3C; Wafer type; Body 1.4408; Disc 1.4404; Metal sealing; Medium temperature -55…+250°C; DN 15mm; Length 17mm; Nominal flange pressure PN6/10/16/25/40, ANSI150/300; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84813091
Country of origin: Italy
Weight: 0.11 Kg
Short Itemnumber:CH009153C
https://www.stasto.eu/web/image/product.template/152536/image_1920?unique=c891e91

check valve series CH009-3C; wafer type; body AISI 316; disc AISI 316L; metal sealing; medium temperature -55…+250°C; DN 15mm; length 17mm; nominal flange pressure PN6/10/16/25/40, ANSI150/300; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

51,10 € 51.1 EUR 51,10 €

price on request

  • DN
  • Length
  • Flange

This combination does not exist.

Availability:
Contact Us
DN 15 mm
Length 17 mm
Flange PN6/10/16/25/40, ANSI150/300
No spare parts are available for this product.
