Tube fittings - Nickel plated brassPressure -1...60bar, ISO 8434-1 (DIN 2353)

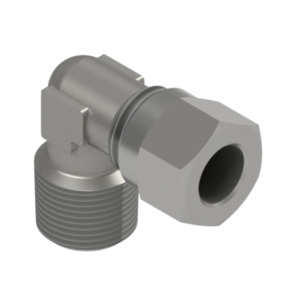

Male elbow Series DI16C
Nickel plated brass; Conical thread
Data sheets, CAD files and further documents are available with the respective variant.
11Articles
Store guide
Other series
Straight male stud fitting Series DI12C
Straight female fitting Series DI13
Straight connector Series DI13
Straight bulkhead connector Series DI27
Elbow connector Series DI17
Male elbow Series DI16C
Mal stud branch tee Series DI21C
T-connector Series DI29
Banjo Series DI35
Die ring Series DI47
Swivel nut Series DI33
Reinforce bushing Series DI56
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||
|---|---|---|---|---|---|
| DI16C-04-18-N | 4 mm | R 1/8" | 2,60 € | ||
| DI16C-06-18-N | 6 mm | R 1/8" | 2,60 € | ||
| DI16C-06-14-N | 6 mm | R 1/4" | 3,00 € | ||
| DI16C-08-18-N | 8 mm | R 1/8" | 3,20 € | ||
| DI16C-08-14-N | 8 mm | R 1/4" | 3,40 € | ||
| DI16C-10-14-N | 10 mm | R 1/4" | 5,10 € | ||
| DI16C-10-38-N | 10 mm | R 3/8" | 5,60 € | ||
| DI16C-12-38-N | 12 mm | R 3/8" | 8,30 € | ||
| DI16C-12-12-N | 12 mm | R 1/2" | 8,90 € | ||
| DI16C-15-12-N | 15 mm | R 1/2" | 11,20 € | ||
| DI16C-18-12-N | 18 mm | R 1/2" | 20,50 € |
