Butterfly valve with electrical actuator Series BUW4-DSE-CG1; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Medium temperature -10...+130°C; Nominal flange pressure PN10/16/ANSI150; Pressure range 0...10bar Water; DN 150mm; Length 56mm; Electrical actuator VB060-H-P0S; Operating time 9s; Voltage 100-240VAC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20mA/0-10V

Butterfly valve with electrical actuator Series BUW4-DSE-0G1; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Medium temperature -10...+130°C; Pressure range 0...10bar Water; DN 200mm; Nominal flange pressure PN10/16/ANSI150; Length 60mm; Actuator VB110-H; Operating time 27s; Voltage 100-240VAC

Butterfly valve with electrical actuator Series BUW4-DSE-CG1; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Medium temperature -10...+130°C; Pressure range 0...10bar Water; DN 200mm; Nominal flange pressure PN10/16/ANSI150; Length 60mm; Actuator VB110-H-P0S; Operating time 27s; Voltage 100-240VAC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20mA/0-10V

Pinch valve; Compact design; Directly operated; Connection Female thread; Body And Connection part POM Natural; Tube Natural rubber Abrasion resistant; Max. control pressure 8bar; Control port 1/8"; Medium temperature -10...+80 °C; Pressure range 0…5,5bar; G 3/4"; DN 20mm

Mechanical limit switch; D4N-1120

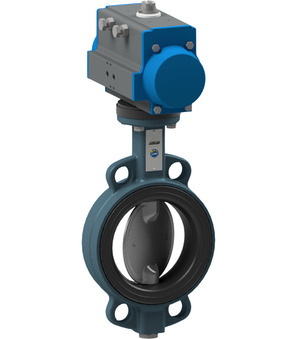

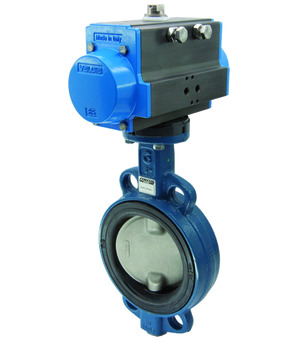

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner FKM; Nominal flange pressure PN25; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Actuator PAD085

Seat seal; Suitable for Knife gate valve Series GL; DN 125mm; Material Natural rubber

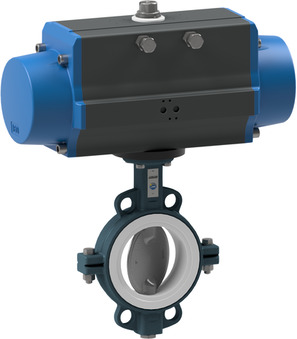

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD100

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc stainless steel AISI 630 PTFE-coated; shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAS1805

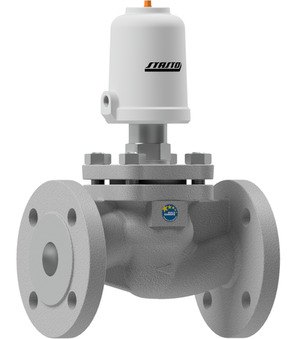

Pneumatically operated seat valve; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For liquids; Closing against flow; Medium temperature -30...+170°C; DN 25mm; Operating pressure 0...20bar; Control pressure 4,4...10bar; Diameter Actuator 80mm; Special version IO-Link Control head without integrated solenoid valves

Cover sealing; Suitable for Knife gate valve Series GL; DN 125mm; Material EPDM

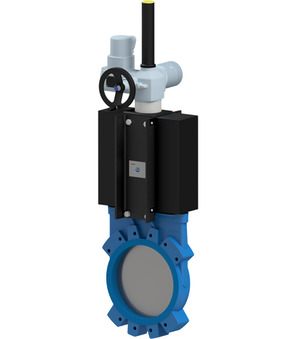

Knife gate valve with electric actuator Series A1EN2DI2-5-B; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Actuator AUMA SA07.6

Knife gate valve with electric actuator Series A1EN2DI2-5-B; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 400mm; Length 100mm; Pressure range 0…6bar; Actuator AUMA SA10.2

Knife gate valve with electric actuator Series A1EN2DI2-5-B; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 250mm; Length 70mm; Pressure range 0…10bar; Actuator AUMA SA07.6

Knife gate valve with electric actuator Series A1EN2DI2-5-B; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 600mm; Length 110mm; Pressure range 0…4bar; Actuator SA07.6 (400V/3ph./50Hz)

Knife gate valve with electric actuator Series A1EN2DI2-5-B; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 700mm; Length 110mm; Pressure range 0…3bar; Actuator SA10.2

Knife gate valve with electric actuator Series A1EM2H2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 24VDC; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0…10bar; Actuator Bernard ASM-6; Stem extension H1=3500mm; d1=400mm; ; ATEX zone 1 and 21

ATEX-certificate; ATEX zone 1 and 21; For knife gate valve Series A, C And F

Ring-butterfly damper with pneumatic actuator; Double flange type; 280 x 355mm; Body Disc And Shaft 1.4301; Adjustable graphite sealing cord; Single acting actuator; Rotation angle: 0...90°; PAS1005-BL; Control pressure 5,5...8bar; Temperature range Max. 400°C; Operating pressure Max. 80mbar; Leakage rate App. 0,5 % of Kvs; Safety position NO

BDH8-280X355-T-001
Ring-butterfly damper with pneumatic actuator; Double flange type; 280 x 355mm; Body Disc And Shaft 1.4301; Adjustable graphite sealing cord; Single acting actuator; Rotation angle: 0...90°; PAS1005-BL; Control pressure 5,5...8bar; Temperature range Max. 400°C; Operating pressure Max. 80mbar; Leakage rate App. 0,5 % of Kvs; Safety position NO
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
FR04-14H-0,5/10-M-F5
Filter regulator Series Gold FR04-M; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 25bar; Metal bowl; Connection G 1/4"; Flow at 6bar/Δp=1bar 900Nl/min; Filter element 5µm; Pressure range 0,5...10bar
