BUW4-150-DZTS-D22

Name: BUW4-150-DZTS-D22
Brand: STASTO
SKU: BUW4-150-DZTS-D22
Price: 2214.3 EUR
Availability: InStock

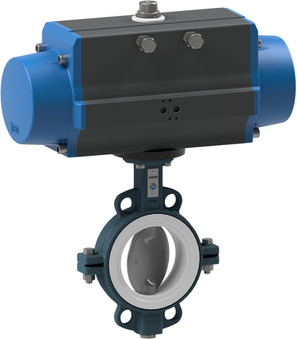

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD100

Intrastat No.: 84818085
Country of origin: Italy
Weight: 16.14 Kg
Short Itemnumber: BUW4150DZTSD22

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 630 PTFE-coated; Shaft AISI 316; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD100

2.214,30 € 2214.3 EUR 2.214,30 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW4-150-DZTS-B x 1.0

Butterfly valve with bare shaft BUW4-150-DZTS-B

Butterfly valve with bare shaft Series BUW4-DZTS-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm

Add to Cart

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

Add to Cart

MFFALFUAL09733 x 1.0
