BDH8-280X355-T-001-ABS54-C001-03-EB0X01-FR04-14H-0,5/10-M-F5

Name: BDH8-280X355-T-001-ABS54-C001-03-EB0X01-FR04-14H-0,5/10-M-F5
Brand: STASTO
SKU: BDH8-280X355-T-001-ABS54-C001-03-EB0X01-FR04-14H-0,5/10-M-F5

BDH8-280X355-T-001

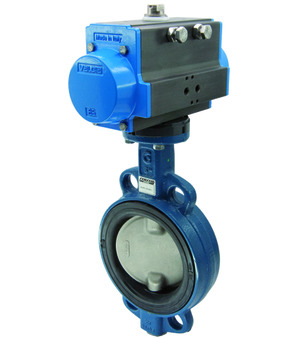

Ring-butterfly damper with pneumatic actuator; Double flange type; 280 x 355mm; Body Disc And Shaft 1.4301; Adjustable graphite sealing cord; Single acting actuator; Rotation angle: 0...90°; PAS1005-BL; Control pressure 5,5...8bar; Temperature range Max. 400°C; Operating pressure Max. 80mbar; Leakage rate App. 0,5 % of Kvs; Safety position NO
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
FR04-14H-0,5/10-M-F5
Filter regulator Series Gold FR04-M; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 25bar; Metal bowl; Connection G 1/4"; Flow at 6bar/Δp=1bar 900Nl/min; Filter element 5µm; Pressure range 0,5...10bar

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BDH8280X355T001ABS54C00103EB0X01FR0414H0.510MF5

BUW6-100-DSE-D22
butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD085
ABS55
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-Wege-NAMUR-Impulsmagnetventil (NM52W2S-TP); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
connector; connector size 22mm; with integrated LED-yellow, VDR and PVC-cable (2 m); voltage 24VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

On request

DN
- 100 mm
Length
- 52 mm
Pressure range
- 0...10 bar
Actuator
- PAD085

This combination does not exist.

Availability:

dimension
DN	100 mm
Length	52 mm
pressure
Pressure range	0...10 bar
characteristics
Actuator	PAD085
