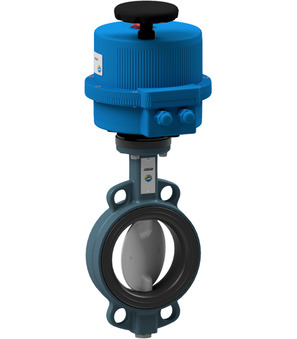

butterfly valve with electrical actuator series BUW2-DSV-002-3C01; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator VB270M-0E50-Q22; operating time 50s; voltage 24VAC/DC; body aluminum; protection class IP68; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Butterfly valve with electrical actuator Series BUW2-DSV-C02-3C01; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Actuator VB270M-RE50-Q22; Operating time 50s; Voltage 24VAC/DC; Incl. Positioner 4...20mA/0...10V; Body Aluminum; Protection class IP68; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Butterfly valve with pneumatic actuator ; Wafer type; Length According to EN558−1 R20; Body, Disc And Shaft AISI 316; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -35...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS0855

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body, Disc And Shaft AISI 316; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -35..+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAS1605

Butterfly valve with electrical actuator Series BUW4-DSE-CG2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator VB060-H-P0S; Operating time 9s; Voltage 100-240VAC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20mA/0-10V

Butterfly valve with electrical actuator Series BUW6-DSE-C2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 40mm; Length 33mm; Actuator VB060-H-P0S; Operating time 9s; Voltage 100-240VAC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20mA/0-10V

Pneumatically operated seat valve; NO; Body Stainless steel AISI 316; Seal PTFE; For gaseous media and liquids; Medium temperature -30...+170°C; Butt weld ends DIN11850-2; DN 20mm; Operating pressure 0-7,4bar; Control pressure 5-10bar; Diameter Actuator 50mm; Head end gasket Klinger Top-chem-2000

Pneumatically operated seat valve; NC; Body Stainless steel AISI 316; Seal PTFE; For liquids; Closing against flow; Medium temperature -30...+170°C; Butt weld ends DIN11850-2; DN 20mm; Operating pressure 0-6,9bar; Control pressure 3,5-10bar; Diameter Actuator 50mm; Head end gasket Klinger Top-chem-2000; Splash water protection M16x1

Pneumatically operated seat valve; NO; Body Stainless steel AISI 316; Cap Plastic; Seal PTFE; For gaseous media and liquids; Medium temperature -30...+135°C; Butt weld ends DIN11850-2; DN 20mm; Operating pressure 0-7,4bar; Control pressure 5-10bar; Diameter Actuator 50mm; Head end gasket Klinger Top-chem-2000

Pneumatically operated seat valve; NC; Body Stainless steel AISI 316; Cap Plastic; Seal PTFE; For liquids; Closing against flow; Medium temperature -30...+170°C; Butt weld ends DIN11850-2; DN 20mm; Operating pressure 0-6,9bar; Control pressure 3,5-10bar; Diameter Actuator 50mm; Head end gasket Klinger Top-chem-2000; Splash water protection M16x1

Pneumatically operated seat valve; NC; Body Stainless steel AISI 316; Cap Plastic; Seal PTFE; For liquids; Closing against flow; Medium temperature -30...+170°C; Butt weld ends ASME BPE 63,5x1,65; DN 65mm; Operating pressure 0-4,2bar; Control pressure 5,6-10bar; Diameter Actuator 80mm; Head end gasket Klinger Top-chem-2000; Splash water protection G1/4"

SE02-D65-ST83-01
Pneumatically operated seat valve; NC; Body Stainless steel 1.4408; Cap Plastic; Seal PTFE; For liquids; Closing against flow; Medium temperature -30...+170°C; Butt weld ends DIN 11850-2 70x2; DN 65mm; Operating pressure 0-4,2bar; Control pressure 5,6-10bar; Diameter Actuator 80mm; Head end gasket Klinger Top-chem-2000; Splash water protection G1/4"
ABS31-BDA08024CS-C003-32-LV-2
ABS31
Mounted pilot valve Series ABS; Silencer; Suitable for Pneumatically operated seat valves Series SE, Pinch valves Series PI03, Series PI04; 3/2-way solenoid valve (31A3AV20); Standard coil BDA; Connector size 32mm; Actuator 80 mm/125 mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Pneumatically operated seat valve Series SE02-ST; NC; Body Stainless steel AISI 316; Seal PTFE; For liquids; Closing against flow; Medium temperature -30...+170°C; Butt weld ends DIN 11850-2; DN 25mm; Operating pressure 0-5,7bar; Control pressure 4,5-10bar; Diameter Actuator 50mm

Seal kit for SE02-D25-ST52

Pneumatically operated seat valve Series SE02-ST; NC; Body Stainless steel AISI 316; Seal PTFE; For liquids; Closing against flow; Medium temperature -30...+220°C; Butt weld ends DIN 11850-2; DN 40mm; Operating pressure 0-7,9bar; Control pressure 3,5-10bar; Diameter Actuator 80mm; Dead-space-free gland installation; High temperature design; Head end gasket Klinger Top-chem-2000; Food application design; wetted materials Conform FDA And EG 1935/2004; Incl. 1 inductive limit switch 10-30VDC; Electrical position indication With cable bushing

Seal kit for SE02-D40-ST81-03

Pneumatically operated seat valve Series SE02-ST; NC; Body Stainless steel AISI 316; Seal PTFE; For liquids; Closing against flow; Medium temperature -30...+170°C; Butt weld ends DIN 11850-2; DN 25mm; Operating pressure 0-5,7bar; Control pressure 4,5-10bar; Diameter Actuator 50mm; Dead-space-free gland installation; Head end gasket Klinger Top-chem-2000; Food application design; wetted materials Conform FDA And EG 1935/2004; Feedback unit for proximity switch M12

Seal kit for SE02-D25-ST52-02

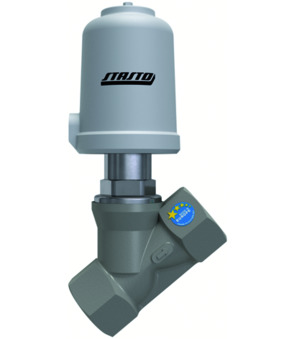

Angle seat-Control valve Series SEC01-ST; G1/2"; DN15; Material AISI 316; Seal PTFE; Kvs-value 0,4 (10%); Operating pressure 0…17bar; Characteristic linear; With mounted digital positioner 8049; 4-Leiter; 24VDC; Control signal 4...20mA

Angle seat-Control valve Series SEC01-ST; G1/2"; DN15; Material AISI 316; Seal PTFE; Kvs-value 0,4 (10%); Operating pressure 0…17bar; Characteristic linear; With mounted digital positioner 8049 ExPro II 2G Ex ia IIC T4 Gb, IP 65; 24VDC; Control signal 4...20mA
