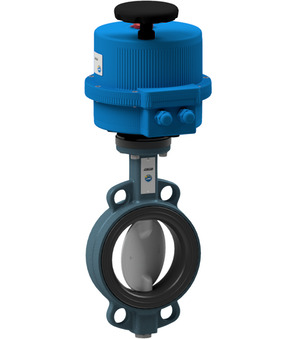

BUW4-100-DSE-CG2

BUW4-100-DSE-CG2

Butterfly valve with electrical actuator Series BUW4-DSE-CG2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator VB060-H-P0S; Operating time 9s; Voltage 100-240VAC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20mA/0-10V

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.46 Kg
Short Itemnumber: BUW4100DSECG2
https://www.stasto.eu/web/image/product.template/238914/image_1920?unique=24fee4a

Butterfly valve with electrical actuator Series BUW4-DSE-CG2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator VB060-H-P0S; Operating time 9s; Voltage 100-240VAC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20mA/0-10V

1.157,30 € 1157.3 EUR 1.157,30 €

price on request

  • DN
  • Length
  • Voltage
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 100 mm
Length 52 mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB110H
Operating time 27 s
BUW2-100-DSE-B x 1.0
Butterfly valve with bare shaft BUW2-100-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…10bar; Flange PN10/16/ANSI150
Add to Cart
Electrical actuator VB060-H-P0S
VB060-H-P0S x 1.0
Electrical actuator VB060-H-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
