Ball valves - automatically operated

STASTO Allgemeine Preisliste (EUR)
BA028-10N-0E-C-01

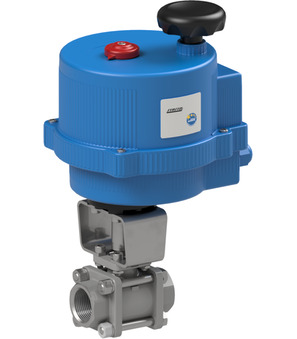

Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; 1"NPT; DN 25mm; Pressure range 0-40bar; Length 92mm; Operating time 15s; Voltage 24VAC/DC; Actuator: Protection class IP67; CSA-Certified; With emergency handwheel
BA028-10N-0F-C-01
Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; 1"NPT; DN 25mm; Pressure range 0-40bar; Length 92mm; Operating time 15s; Voltage 100-240VAC; Actuator: Protection class IP67; CSA-Certified; With emergency handwheel
BA028-112-D0-01

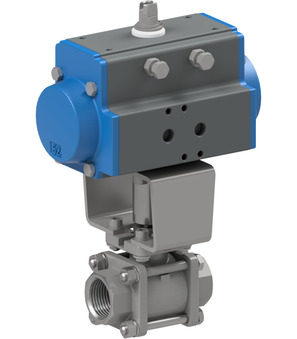

Ball valve with pneumatic actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; With additional compensation hole in the ball; Actuator PAD063
BA028-112-L-01
Ball valve made of steel; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Mounted limit switch box EB0X31 With two proximity switches IFM IS5001
BA028-112-S0-01
Ball valve with pneumatic actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; With additional compensation hole in the ball; Actuator PAS0855
BA028-20-D0-01
Ball valve with pneumatic actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; With additional compensation hole in the ball; Actuator PAD075
BA028-20-S0-01
Ball valve with pneumatic actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; With additional compensation hole in the ball; Actuator PAS1005
BA028-34-0E-C-01
Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 15s; Voltage 24VAC/DC; Actuator: Protection class IP67; CSA-Certified; With emergency handwheel
BA028-34-0E-C3C-01
Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Operating time 15s; Voltage 24VAC/DC; Actuator: Protection class IP67; CSA-Certified; With emergency handwheel
BA028-34N-0E-C-01
Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; 3/4"NPT; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 15s; Voltage 24VAC/DC; Actuator: Protection class IP67; CSA-Certified; With emergency handwheel
BA033-10-CN-01
Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 92mm; Voltage 15-30V/50-60Hz; 12-48VDC; With integrated positioner 4-20mA; Operating time 20 Seconds; Actuator VRX75-CN20-Q17; IP68; ATEX II2GD ExdIIBT6Gb ExtbIIICT80°CDb; With control ball V 30...60°
BA033-10-CN-A-01
Ball valve with electrical actuator; ATEX II 2 G/D; TA-Luft; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 92mm; Voltage 15-30V/50-60Hz; 12-48VDC; With integrated positioner 4-20mA; Operating time 20 Seconds; Actuator VRX75-CN20-Q17; IP68; ATEX II2GD ExdIIBT6Gb ExtbIIICT80°CDb; With control ball V 30...60°
BA033-10-S2
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAS0635 Actuator PAS1003
BA033-112-H3
Ball valve with Hydraulic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 10…120bar; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator 40DA
BA033-112N-0F-C-01
Ball valve with electrical actuator; Female thread; Body ,Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; 11/2"NPT; DN 40mm; Pressure range 0-25bar; Length 116mm; Operating time 15s; Voltage 100-240VAC; Actuator: Protection class IP68; CSA-Certified; With emergency hand wheel
BA033-112-QH
Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 11/2"; DN 40mm; Pressure range 0-25bar; Length 116mm; Operating time 9s; Voltage 100-240VAC; Accumulator for safety position NO
BA033-114-D0-03
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAD052; Mounting bridge And Bolt Stainless steel
BA033-114N-0E-C-01
Ball valve with electrical actuator; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Thread 11/4"NPT; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm; Electrical actuator VSA100 Incl. CSA-Approval; Operating time 15s; Voltage 24VAC/DC
BA033-114N-0F-C-01
Ball valve with electrical actuator; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Thread 11/4"NPT; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm; Electrical actuator VS100 Incl. CSA-Approval; Operating time 15s; Voltage 100-240VAC
BA033-12-D0-3C-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator PTFE-coated; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD052-PS; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
