BA033-10-S2

Name: BA033-10-S2
Brand: STASTO
SKU: BA033-10-S2

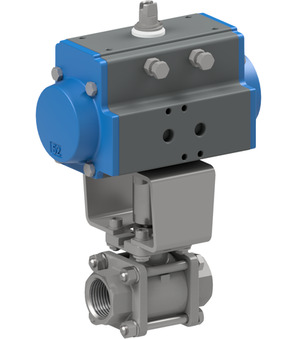

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAS0635 Actuator PAS1003

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.98 Kg
Short Itemnumber: BA03310S2

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAS0635 actuator PAS1003

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

710000-1" x 1.0

Ball valve made of stainless steel 710000-1"

Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm

Add to Cart

PAS1003 x 1.0

Pneumatic actuator PAS1003

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 35,9Nm

Add to Cart

ATSV0704 x 1.0
