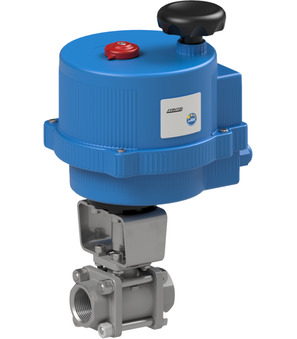

BA033-112-QH

Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100…240VAC; Function NO

Mounting bracket; F07/F05-F05; Bolt 14-10
