Ball valves - automatically operated

BA049-150-D0-A
Flanged ball valve with pneumatic actuator Series BA049-D0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 150mm; Length 232mm; Actuator PAD125
EB0X14
Mounted limit switch box; IP65; Inductive dual proximity switch, Suitable for Actuators PAD/PAS052-270; Switching capacity 8VDC/3mA; Switch type P&F NCN3-F25F-N4; Function NC contact-Namur - ATEX; Material of case Plastic
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz

To Series: Flanged ball valve with pneumatic actuator Series BA049-D0-A

DN	Length	Pressure range	Design	Connector	Voltage	Switch type	Function	Material of case	Type
150 mm	232 mm	0...16 bar	ATEX	-	-	P&F NCN3-F25F-N4	NC-Namur - ATEX	Plastic	BA049-150-D0-A-EB0X14

Flanged ball valve with pneumatic actuator Series BA043-A

ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

To Series: Flanged ball valve with pneumatic actuator Series BA043-A

Grundversion

DN	Length	Design	Type	Sequence
15 mm	35 mm	ATEX	BA043-15-D0-A	27360001
20 mm	40 mm	ATEX	BA043-20-D0-A	27360002
25 mm	46 mm	ATEX	BA043-25-D0-A	27360003
32 mm	54 mm	ATEX	BA043-32-D0-A	27360004
40 mm	63,5 mm	ATEX	BA043-40-D0-A	27360005
50 mm	82 mm	ATEX	BA043-50-D0-A	27360006
65 mm	103 mm	ATEX	BA043-65-D0-A	27360007
80 mm	122 mm	ATEX	BA043-80-D0-A	27360008
100 mm	152 mm	ATEX	BA043-100-D0-A	27360009
125 mm	196 mm	ATEX	BA043-125-D0-A	27360010
150 mm	232 mm	ATEX	BA043-150-D0-A	27360011

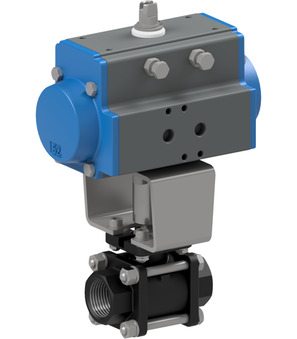

BA028-34-D0-A

Ball valve with pneumatic actuator Series BA028-A; ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm; Actuator PAD052

To Series: Ball valve with pneumatic actuator Series BA028-A

Female thread	DN	Length	Pressure range	Design	Type
RP 3/4"	20 mm	76 mm	0...40 bar	ATEX	BA028-34-D0-A

Ball valve with pneumatic actuator Series BA028-A

ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C

To Series: Ball valve with pneumatic actuator Series BA028-A

Grundversion

Female thread	DN	Length	Pressure range	Design	Type	Sequence
RP 1/2"	15 mm	65 mm	0...64 bar	ATEX	BA028-12-S0-A	27380000
RP 3/4"	20 mm	76 mm	0...40 bar	ATEX	BA028-34-S0-A	27380001

PAD115-P

Pneumatic actuator Series PAD; ATEX II 2 G/D c T6; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; PTFE coated; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

To Series: Pneumatic actuator Series PAD-P

Diameter	Flange ISO5211	Female square	Torque at 5,5bar	Design	Type
115 mm	F07/F10	22 mm	249 Nm	ATEX	PAD115-P

Ball valve with pneumatic actuator Series BA446-S0AH

Butt weld ends ISO 11850; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+170°C

Kugelhahn mit Druckluftdrehantrieb Serie BA446-S0AH

To Series: Ball valve with pneumatic actuator Series BA446-S0AH

Grundversion

Female thread	DN	Length	Pressure range	Design	Type	Sequence
-	-	-	-	ATEX	BA446-15-S0-AH	27400000
-	-	-	-	ATEX	BA446-20-S0-AH	27400001
-	-	-	-	ATEX	BA446-25-S0-AH	27400002
-	-	-	-	ATEX	BA446-32-S0-AH	27400003
