Flanged ball valve with pneumatic actuator Series BA043-A Store

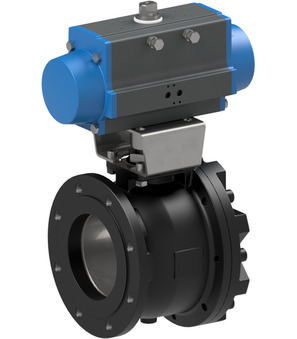

Flanged ball valve with pneumatic actuator BA043-125-D0-A

Name: Flanged ball valve with pneumatic actuator BA043-125-D0-A
Brand: STASTO
SKU: BA043-125-D0-A
Price: 2346.2 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA043-A; ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 125mm; Length 196mm; Actuator PAD115

Intrastat No.: 84818081
Country of origin: Italy
Weight: 51.19 Kg
Short Itemnumber: BA043125D0A

flanged ball valve with pneumatic actuator series BA043-A; ATEX II 2 G/D; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 125mm; length 196mm; actuator PAD115

2.346,20 € 2346.2 EUR 2.346,20 €

DN
- 125 mm
Length
- 196 mm
Design
- ATEX
Actuator
- PAD115

This combination does not exist.

Availability:

Add to cart

dimension
DN	125 mm
Length	196 mm
design
Design	ATEX
characteristics
Actuator	PAD115

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Declarations of Conformity

Druckluftdrehantrieb_EN.pdf

Download

BA043-125-L-A x 1.0

Flanged ball valve BA043-125-L-A

Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 125mm; Length 196mm

Add to Cart

PAD115 x 1.0

Pneumatic actuator PAD115

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

Add to Cart

RI3036 x 1.0
