Ball valve with pneumatic actuator Series BA028-A Store

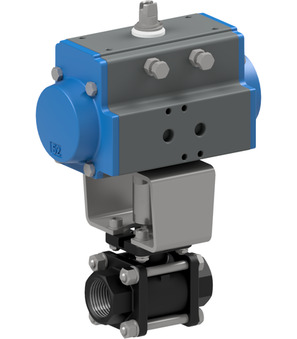

Ball valve with pneumatic actuator BA028-12-S0-A

Name: Ball valve with pneumatic actuator BA028-12-S0-A
Brand: STASTO
SKU: BA028-12-S0-A

Ball valve with pneumatic actuator Series BA028-A; ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm; Actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.883 Kg
Short Itemnumber: BA02812S0A

ball valve with pneumatic actuator series BA028-A; ATEX II 2 G/D; female thread; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAS0525

On request

Female thread
- RP 1/2"
DN
- 15 mm
Length
- 65 mm
Design
- ATEX
Pressure range
- 0...64 bar
Actuator
- PAS0525

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
Female thread	RP 1/2"
DN	15 mm
Length	65 mm
design
Design	ATEX
pressure
Pressure range	0...64 bar
characteristics
Actuator	PAS0525

BA028-12-L-A x 1.0

Ball valve made of steel 1/2"-15-0...64-65

Ball valve made of steel Series BA028-L-A; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm

Add to Cart

PAS0525 x 1.0

Pneumatic actuator PAS0525

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm

Add to Cart

RI3790 x 1.0
