BUWZ-600-DSE-G

BUWZ-600-DSE-G

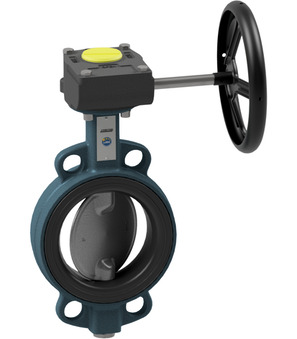

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 600mm; Length 154mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 240.72 Kg
Short Itemnumber: BUWZ600DSEG
https://www.stasto.eu/web/image/product.template/126381/image_1920?unique=1232d18

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN16; medium temperature -10...+130°C; pressure range 0...10bar; DN 600mm; length 154mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUWZ-600-DSE-B x 1.0
    Butterfly valve with bare shaft BUWZ-600-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 600mm; Length 154mm; Pressure range 0…10bar; Flange PN16
    Add to Cart
    GB02-16/6018-01
    GB02-16/6018-01 x 1.0
    GB02-16/6018-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 3250Nm; Flange ISO5211 F16; Diameter/Key 60/18mm
