Butterfly valve with manual gear box Series BUW-CSR-G-A Store

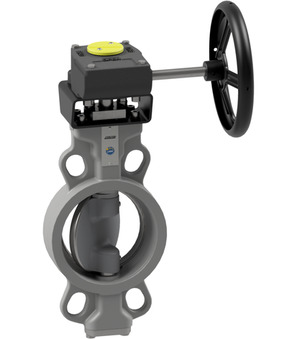

Butterfly valve with manual gear box BUW9-400-CSRS-G-A

Name: Butterfly valve with manual gear box BUW9-400-CSRS-G-A
Brand: STASTO
SKU: BUW9-400-CSRS-G-A
Price: 11129.2 EUR
Availability: InStock

Butterfly valve with manual gear box Series BUW-CSR-G-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 400mm; Length 102mm; Nominal flange pressure PN10/16/25/ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 129.044 Kg
Short Itemnumber: BUW9400CSRSGA

butterfly valve with manual gear box series BUW-CSR-G-A; ATEX II 2 G/D Ex h X; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 400mm; length 102mm; nominal flange pressure PN10/16/25/ANSI150

11.129,20 € 11129.2 EUR 11.129,20 €

DN
- 400 mm
Length
- 102 mm
Flange
- PN10/16/25, ANSI150
Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	400 mm
Length	102 mm
Flange	PN10/16/25, ANSI150
design
Design	ATEX

BUW9-400-CSRS-B-A x 1.0

Butterfly valve with bare shaft BUW9-400-CSRS-B-A

Butterfly valve with bare shaft Series BUW-CSR-B-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 400mm; Length 102mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart
