BUW9-250-CSRQ-D42

Name: BUW9-250-CSRQ-D42
SKU: BUW9-250-CSRQ-D42
Price: 5168.4 EUR
Availability: InStock

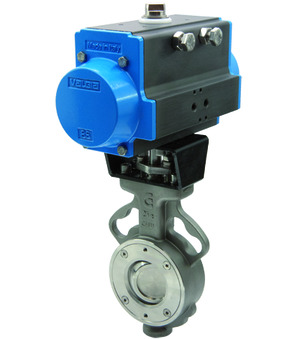

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C; DN 250mm; Length 69mm; Pressure range 0…25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD200

Intrastat No.: 84818085
Country of origin: Italy
Weight: 77.0 Kg
Short Itemnumber: BUW9250CSRQD42

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 250mm; length 69mm; pressure range 0…25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD200

5.168,40 € 5168.4 EUR 5.168,40 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0…25bar

Spezifikationen
Spare Parts

Pressure range

0…25bar

BUW9-250-CSRQ-B x 1.0 Pcs

Butterfly valve with bare shaft BUW9-250-CSRQ-B

Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 250mm; Length 69mm; Nominal flange pressure PN10/16/25/ANSI150

APKTGB0150 x 1.0 Pcs

APKTGB0150

Mounting bracket For butterfly valve; DN250-F12-Square 22; Actuator F10/F14-36

PAD200 x 1.0 Pcs

Pneumatic actuator PAD200

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 1170Nm
