BUW9-250-CSIQ-D42-01

Name: BUW9-250-CSIQ-D42-01
SKU: BUW9-250-CSIQ-D42-01

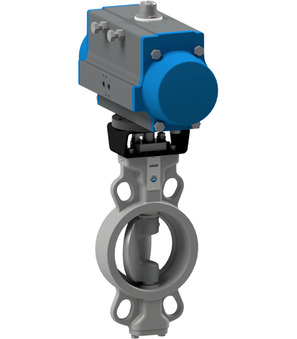

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+250°C; DN 250mm; Length 69mm; Pressure range 0…25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD230

Intrastat No.: 84818085
Country of origin: Italy

Weight: 98.5 Kg
Short Itemnumber: BUW9250CSIQD4201

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+250°C; DN 250mm; length 69mm; pressure range 0…25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD230

On request

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0…25bar

Documents

Data sheets, drawings and CAD files

Pressure range

0…25bar

BUW9-250-CSIQ-D42-01

Documents

1 Documents

Language-independent

ZIP

CAD / 3D

STP
CADSTEP · BUW9250CSIQD4201
CAD-STEP 10,4 MB Updated 04/10/2026

Download

BUW9-250-CSIQ-B x 1.0 Pcs

Butterfly valve with bare shaft BUW9-250-CSIQ-B

Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 250mm; Length 69mm; Nominal flange pressure PN10/16/25/ANSI150

PAD230 x 1.0 Pcs

Pneumatic actuator PAD230

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 1934Nm

APKTGB0152 x 1.0 Pcs
