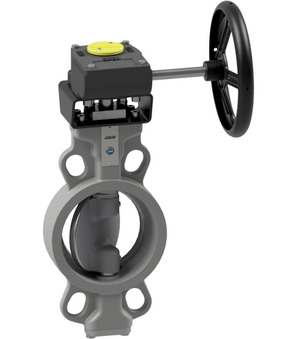

Butterfly valve with manual gear box BUW9-200-CSRS-G
Butterfly valve with manual gear box Series BUW-CSR-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Pressure range 0...25bar; Medium temperature -10...+230°C; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/25/ANSI150
Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW9200CSRSG
Country of origin: Italy
Short Itemnumber: BUW9200CSRSG
butterfly valve with manual gear box series BUW-CSR-G; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; pressure range 0...25bar; medium temperature -10...+230°C; DN 200mm; length 61mm; nominal flange pressure PN10/16/25/ANSI150
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 56 mm |
| Flange | PN10/16/25, ANSI150 |
| pressure | |
| Pressure range | 0...25 bar |
No spare parts are available for this product.
