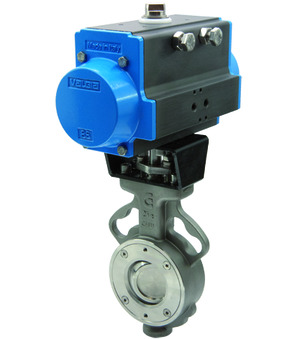

Butterfly valve with pneumatic rotary actuator BUW9-150-SSRS-D12 (copy)
butterfly valve with pneumatic actuator series BUW9-SSRS-D; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 150mm; length 56mm; pressure range 0...16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD115
Intrastat No.: 84818085
Country of origin: Italy
Weight: 0.0 Kg
Short Itemnumber: BUW9150SSRSSU2
Country of origin: Italy
Weight: 0.0 Kg
Short Itemnumber: BUW9150SSRSSU2
butterfly valve with pneumatic actuator series BUW9-SSRS-D; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 150mm; length 56mm; pressure range 0...16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD115
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 56 mm |
| Flange | PN10/16/25, ANSI150 |
| pressure | |
| Pressure range | 0...16 bar |
| characteristics | |
| Actuator | PAD115 |
No spare parts are available for this product.
