BUW9-150-SSIS-S42-G

Name: BUW9-150-SSIS-S42-G
Brand: STASTO
SKU: BUW9-150-SSIS-S42-G

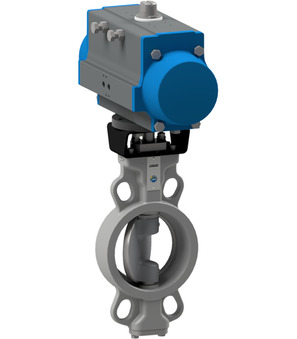

Butterfly valve with pneumatic actuator; NC; Wafer type; Length According to EN558−1R20; Body Steel 1.4408; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…25bar; Nominal flange pressure PN10/16/25/ANSI150; Free of oil and grease for oxygen; Actuator PAS2005-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 71.4 Kg
Short Itemnumber: BUW9150SSISS42G

butterfly valve with pneumatic actuator; NC; wafer type; length according to EN558−1R20; body steel AISI 316; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…25bar; nominal flange pressure PN10/16/25/ANSI150; free of oil and grease for oxygen; actuator PAS2005-H

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BUW9-150-SSIS-B-G x 1.0

Butterfly valve with bare shaft BUW9-150-SSIS-B-G

Butterfly valve with bare shaft Series BUW9-SSIS-B-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150; Free of oil and grease for oxygen

Add to Cart

PAS2005-H x 1.0

Pneumatic actuator PAS2005-H

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

Add to Cart

APKT001000 x 1.0
