Butterfly valve with hand lever Series BUW9-CSRS-L-A Store

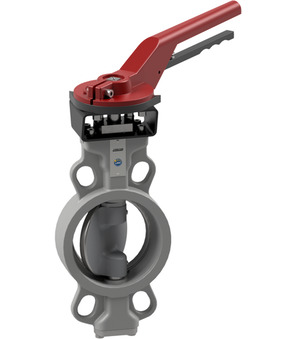

Butterfly valve with hand lever BUW9-150-CSRS-L-A

Name: Butterfly valve with hand lever BUW9-150-CSRS-L-A
Brand: STASTO
SKU: BUW9-150-CSRS-L-A
Price: 1700.7 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW9-CSRS-L-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.55 Kg
Short Itemnumber: BUW9150CSRSLA

butterfly valve with hand lever series BUW9-CSRS-L-A; ATEX II 2 G/D Ex h X; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; nominal flange pressure PN10/16/25/ANSI150; medium temperature -10...+230°C; pressure range 0...25bar; DN 150mm; length 56mm

1.700,70 € 1700.7 EUR 1.700,70 €

DN
- 150 mm
Length
- 56 mm
Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	150 mm
Length	56 mm
design
Design	ATEX

BUW9-150-CSRS-B-A x 1.0

Butterfly valve with bare shaft BUW9-150-CSRS-B-A

Butterfly valve with bare shaft Series BUW-CSR-B-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
