Butterfly valve with pneumatic actuator BUW9-150-CSIS-S12

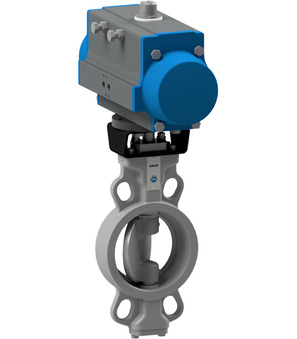

Butterfly valve with pneumatic actuator BUW9-150-CSIS-S12

butterfly valve with pneumatic actuator series BUW9-CSIS-S; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1805-H

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 56.3 Kg
Short Itemnumber: BUW9150CSISS12
https://www.stasto.eu/web/image/product.template/237467/image_1920?unique=5dea311

butterfly valve with pneumatic actuator series BUW9-CSIS-S; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1805-H

4.068,20 € 4068.2 EUR 4.068,20 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150

BUW9-150-CSIS-S12

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW9-150-CSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-150-CSIS-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Pneumatic actuator PAS1805-H
PAS1805-H x 1.0 Pcs
Pneumatic actuator PAS1805-H
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 180mm; Flange ISO5211 F10/F14; Female square 36mm; Torque at 5,5bar 262Nm
APKT001000 x 1.0 Pcs
APKT001000
Mounting bracket For butterfly valve; DN200; F14/F12-F14/F10-17-36
