Butterfly valve with manual gear box Series BUW9-SSR2S-G Store

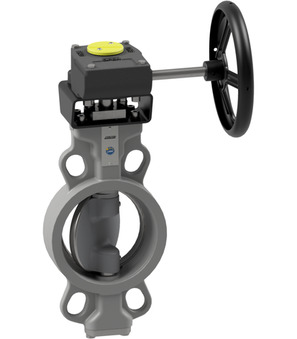

Butterfly valve with manual gear box BUW9-125-SSR2S-G

Name: Butterfly valve with manual gear box BUW9-125-SSR2S-G
Brand: STASTO
SKU: BUW9-125-SSR2S-G

Butterfly valve with manual gear box Series BUW9-SSR2S-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE/Inconel 625-Graphite; Medium temperature -10...+230°C; Pressure range 0...25bar; Fire-safe; DN 125mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 14.72 Kg
Short Itemnumber: BUW9125SSR2SG

butterfly valve with manual gear box series BUW9-SSR2S-G; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat RTFE/inconel 625-graphite; medium temperature -10...+230°C; pressure range 0...25bar; fire-safe; DN 125mm; length 56mm; nominal flange pressure PN10/16/25/ANSI150

On request

DN
- 125 mm
Length
- 56 mm
Flange
- PN10/16/25, ANSI150

This combination does not exist.

Availability:

Specifications
Spare Parts

DN	125 mm
Length	56 mm
Flange	PN10/16/25, ANSI150

BUW9-125-SSR2S-B x 1.0

Butterfly valve with bare shaft BUW9-125-SSR2S-B

Butterfly valve with bare shaft Series BUW9-SSR2S-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE/Inconel 625-Graphite; Medium temperature -10...+230°C; Pressure range 0…25bar; Fire-safe; DN 125mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
