Butterfly valve with hand lever BUW9-080-SSIS-L-3C

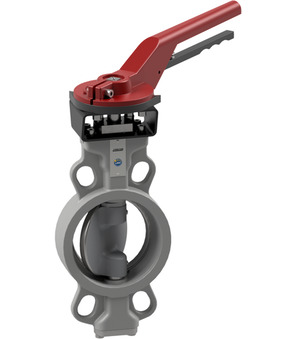

Butterfly valve with hand lever BUW9-080-SSIS-L-3C

butterfly valve with hand lever series BUW9-SSIS-L; wafer type; double eccentric; length according to EN558−1R20; housing and disc AISI 316; shaft AISI 630; seat Inconel 625; nominal flange pressure PN10/16/25/ANSI150; medium temperature -10...+425°C; pressure range 0...25bar; DN 80mm; length 46mm; ; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Short Itemnumber: BUW9080SSISL3C
https://www.stasto.eu/web/image/product.template/176908/image_1920?unique=406472e

butterfly valve with hand lever series BUW9-SSIS-L; wafer type; double eccentric; length according to EN558−1R20; housing and disc AISI 316; shaft AISI 630; seat Inconel 625; nominal flange pressure PN10/16/25/ANSI150; medium temperature -10...+425°C; pressure range 0...25bar; DN 80mm; length 46mm; ; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.046,20 € 1046.2 EUR 1.046,20 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25bar
DN 80 mm
Length 46 mm
Brand STASTO
Pressure range 0...25bar
DN 80 mm
Length 46 mm
Brand STASTO
BUW9-080-SSIS-B-3C x 1.0 Pcs
Butterfly valve with bare shaft BUW9-080-SSIS-B-3C
butterfly valve with bare shaft series BUW9-SSIS-B; wafer type; double eccentric; length according to EN558−1R20; housing and disc AISI 316, shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...25bar; DN 80mm; length 46mm; nominal flange pressure PN10/16/25/ANSI150; inspection certificate EN-10204-3.1; for material, pressure and tightness
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
