Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4-A Store

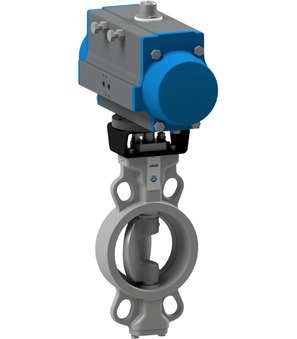

Butterfly valve with pneumatic actuator BUW9-080-SSIS-D42-A

Name: Butterfly valve with pneumatic actuator BUW9-080-SSIS-D42-A
Brand: STASTO
SKU: BUW9-080-SSIS-D42-A
Price: 1661.3 EUR
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4-A;ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD115-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.83 Kg
Short Itemnumber: BUW9080SSISD42A

butterfly valve with pneumatic actuator series BUW9-SSIS-D4-A;ATEX II 2 G/D Ex h X; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+425°C; pressure range 0...25bar; DN 80mm; length 46mm; nominal flange pressure PN10/16/25/ANSI150; actuator PAD115-H

1.661,30 € 1661.3 EUR 1.661,30 €

DN
- 80 mm
Length
- 46 mm
Flange
- PN10/16/25, ANSI150
Design
- ATEX
Actuator
- PAD115-H

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	80 mm
Length	46 mm
Flange	PN10/16/25, ANSI150
design
Design	ATEX
characteristics
Actuator	PAD115-H

BUW9-080-SSIS-D42 x 1.0

Butterfly valve with pneumatic actuator BUW9-080-SSIS-D42

Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Actuator PAD115-H
