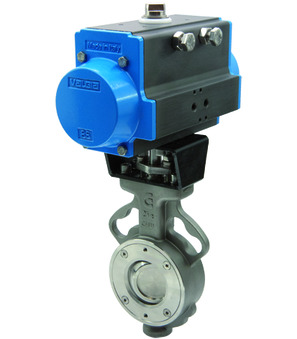

Butterfly valve with pneumatic actuator BUW9-065-SSRS-S22

Name: Butterfly valve with pneumatic actuator BUW9-065-SSRS-S22
SKU: BUW9-065-SSRS-S22
Price: 1837.8 EUR
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW9-SSRS-S; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar; DN 65mm; Length 46mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS1155

Intrastat No.: 84818085
Country of origin: Italy

Weight: 26.53 Kg
Short Itemnumber: BUW9065SSRSS22

butterfly valve with pneumatic actuator series BUW9-SSRS-S; wafer type; double eccentric; length according to EN558−1R20; body and disc AISI 316, shaft AISI 630; seat RTFE; medium temperature -10...+230°C; single acting actuator; control pressure 5,5...8bar; DN 65mm; length 46mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1155

1.837,80 € 1837.8 EUR 1.837,80 €

excl. tax

DN
- 65 mm
Length
- 46 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...10 bar
Actuator
- PAS1155

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10 bar
DN	65 mm
Length	46 mm
Flange	PN10/16/25, ANSI150

Documents

Data sheets, drawings and CAD files

Pressure range	0...10 bar
DN	65 mm
Length	46 mm
Flange	PN10/16/25, ANSI150

BUW9-065-SSRS-S22

Documents

1 Documents

Language-independent

ZIP

CAD / 3D

STP
CADSTEP · BUW9065SSRSS22
CAD-STEP 13,4 MB Updated 04/10/2026

Download

BUW9-065-SSRS-B x 1.0 Pcs

Butterfly valve with bare shaft BUW9-065-SSRS-B

Butterfly valve with bare shaft Series BUW-SSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 65mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150
