Butterfly valve with pneumatic actuator Series BUW9-SSRS-S Store

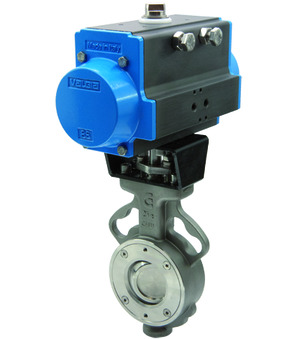

Butterfly valve with pneumatic actuator BUW9-050-SSRS-S12

Name: Butterfly valve with pneumatic actuator BUW9-050-SSRS-S12
Brand: STASTO
SKU: BUW9-050-SSRS-S12
Price: 1359.1 EUR
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW9-SSRS-S; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar; DN 50mm; Length 43mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS1155

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.13 Kg
Short Itemnumber: BUW9050SSRSS12

butterfly valve with pneumatic actuator series BUW9-SSRS-S; wafer type; double eccentric; length according to EN558−1R20; body and disc AISI 316, shaft AISI 630; seat RTFE; medium temperature -10...+230°C; single acting actuator; control pressure 5,5...8bar; DN 50mm; length 43mm; pressure range 0...16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1155

1.359,10 € 1359.1 EUR 1.359,10 €

DN
- 50 mm
Length
- 43 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...16 bar
Actuator
- PAS1155

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	43 mm
Flange	PN10/16/25, ANSI150
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1155

BUW9-050-SSRS-B x 1.0

Butterfly valve with bare shaft BUW9-050-SSRS-B

Butterfly valve with bare shaft Series BUW-SSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
