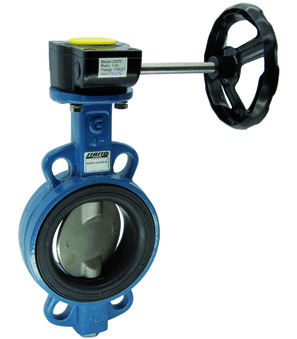

Butterfly valve with manual gear box BUW6-500-DSN-G-A

Butterfly valve with manual gear box BUW6-500-DSN-G-A

Butterfly valve with manual gear box Series BUW6-DSN-G-A; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 500mm; Length 127mm

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6500DSNGA

Scope of delivery

butterfly valve with gear box
https://www.stasto.eu/web/image/product.template/182789/image_1920?unique=3c279ff

butterfly valve with manual gear box series BUW6-DSN-G-A; ATEX Ex II 2GD c TX; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 500mm; length 127mm

5.539,70 € 5539.7 EUR 5.539,70 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Design

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 500 mm
Length 127 mm
Design ATEX
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 500 mm
Length 127 mm
Design ATEX

BUW6-500-DSN-G-A

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW6-500-DSN-B-A x 1.0 Pcs
Butterfly valve with bare shaft BUW6-500-DSN-B-A
Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 500mm; Length 127mm; Pressure range 0...16bar; Flange PN10/16/ANSI150
GB02-16/4512-01
GB02-16/4512-01 x 1.0 Pcs
GB02-16/4512-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F16; Diameter/Key 45/12mm
