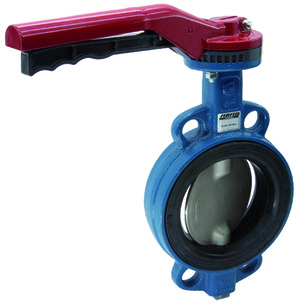

Butterfly valve with hand lever BUW6-300-DSN-L-A-01

Name: Butterfly valve with hand lever BUW6-300-DSN-L-A-01
Brand: STASTO
SKU: BUW6-300-DSN-L-01

Butterfly valve with hand lever Series BUW6-DSN-L; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm;
Incl.Limit switch box; IP67; 2 Proximity switch; Switch type P&F NAMUR NJ2-V3-N; BX45-220MF33 - IP67 EEX ia; Material of case Aluminum; Temperature range -20...+80°C; Including visual indication

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6300DSNL01

butterfly valve with hand lever series BUW6-DSN-L; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 300mm; length 78mm;
incl.limit switch box; IP67; 2 proximity switch; switch type P&F NAMUR NJ2-V3-N; BX45-220MF33 - IP67 EEX ia; material of case aluminum; temperature range -20...+80°C; including visual indication
