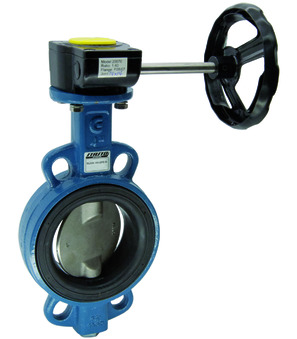

Butterfly valve with manual gear box BUW6-300-DSN-G

Butterfly valve with manual gear box BUW6-300-DSN-G

Butterfly valve with manual gear box Series BUW6-DSN-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 8.868 Kg
Short Itemnumber: BUW6300DSNG

Scope of delivery

butterfly valve with gear box
https://www.stasto.eu/web/image/product.template/133723/image_1920?unique=406472e

butterfly valve with manual gear box series BUW6-DSN-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 300mm; length 78mm

1.391,30 € 1391.3 EUR 1.391,30 €

Not Available For Sale

excl. tax
  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 300 mm
Length 78 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 300 mm
Length 78 mm

BUW6-300-DSN-G

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW6-300-DSN-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-300-DSN-B
Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 300mm; Length 78mm; Pressure range 0...16bar; Flange PN10/16/ANSI150
GB02-10/22-02
GB02-10/22-02 x 1.0 Pcs
GB02-10/22-02
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
