BUW6-300-DSE-S1D2

Name: BUW6-300-DSE-S1D2
Brand: STASTO
SKU: BUW6-300-DSE-S1D2
Price: 5200.4 EUR
Availability: InStock

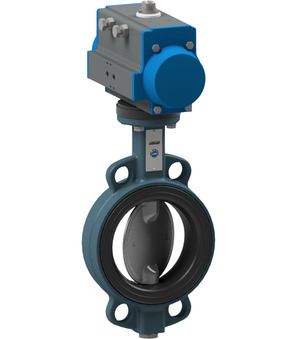

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 4…8bar; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Actuator PAS2302

Intrastat No.: 84818085
Country of origin: Italy
Weight: 110.1 Kg
Short Itemnumber: BUW6300DSES1D2

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 4…8bar; medium temperature -10...+130°C; pressure range 0...16bar; DN 300mm; length 78mm; actuator PAS2302

5.200,40 € 5200.4 EUR 5.200,40 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-300-DSE-B x 1.0

Butterfly valve with bare shaft BUW6-300-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 300mm; Length 78mm; Pressure range 0…16bar; Nominal flange pressure PN10/16/ANSI150

Add to Cart

PAS2302 x 1.0

Pneumatic actuator PAS2302

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 466Nm

Add to Cart

APKTGB0014 x 1.0
