Butterfly valve with hand lever Series BUW6-DSE-L-3C Store

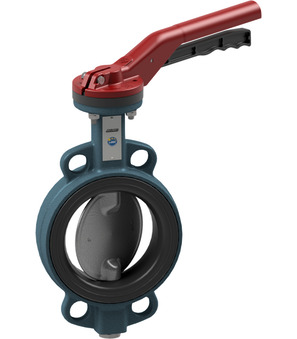

Butterfly valve with hand lever BUW6-300-DSE-L-3C

Name: Butterfly valve with hand lever BUW6-300-DSE-L-3C
Brand: STASTO
SKU: BUW6-300-DSE-L-3C
Price: 1063.9 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW6-DSE-L-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 32.71 Kg
Short Itemnumber: BUW6300DSEL3C

butterfly valve with hand lever series BUW6-DSE-L; wafer type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 300mm; length 78mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.063,90 € 1063.9 EUR 1.063,90 €

DN
- 300 mm
Length
- 78 mm
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to cart

dimension
DN	300 mm
Length	78 mm
pressure
Pressure range	0...16 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW6300DSEL3C.stp

Download

BUW6-300-DSE-B-3C x 1.0

Butterfly valve with bare shaft BUW6-300-DSE-B-3C

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 300mm; Length 78mm; Pressure range 0…16bar; Nominal flange pressure PN10/16/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
