BUW6-300-CSV-G-A

BUW6-300-CSV-G-A

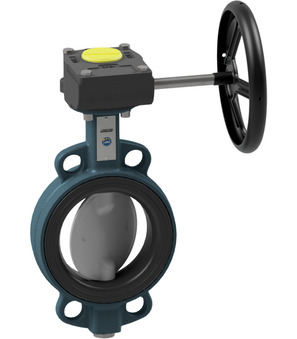

Butterfly valve with manual gear box; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 300mm; Length 78mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 45.628 Kg
Short Itemnumber: BUW6300CSVGA
https://www.stasto.eu/web/image/product.template/160837/image_1920?unique=24fee4a

butterfly valve with manual gear box; ATEX Ex II 2GD c TX; wafer type; length according to EN558−1R20; body carbon steel A216-WCB; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 300mm; length 78mm

3.294,70 € 3294.7 EUR 3.294,70 €

price on request

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BUW6-300-CSV-B-A x 1.0
BUW6-300-CSV-B-A
Butterfly valve with bare shaft; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 300mm; Length 78mm
Add to Cart
GB02-10/22-02
GB02-10/22-02 x 1.0
GB02-10/22-02
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
